MP-2542
$22.50

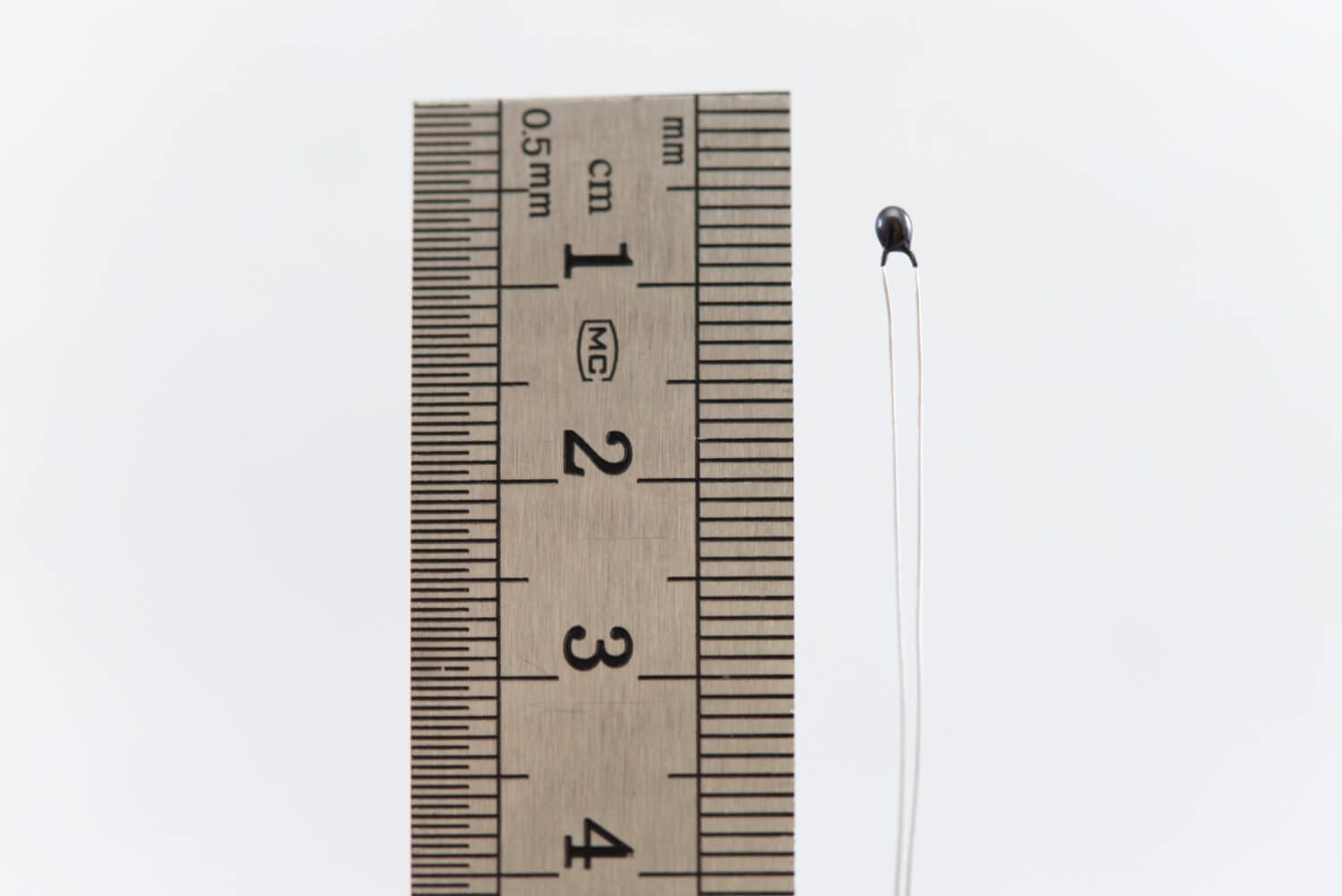

Description: This sensor has a 2.4 mm diameter bead head. Thermistor is typically mounted in a hole. The resistance is 15K ohms at @ 25 °C (TS-67/ 15K-1 curve). The wires are not twisted together: they are un-insulated and not terminated. Works will all TE Technology controllers. The wire leads can be extended with standard copper wire of any gauge recommended for the controllers (no special alloy necessary). When used with the TC-24-10 controller the user must add “Fast-On” connectors to attach to controller.
| Weight | .02 lbs |
|---|---|
| Dimensions | 8 × 6 × 0.08 in |
DESCRIPTION
Description: A small bead thermistor, about 2.4 mm in diameter, with un-insulated 32 gauge wires. 15K ohms at 25 °C, for measuring from -20 °C to +100 °C. Thermistor is typically mounted in a hole. Works with all TE Technology controllers. The wire leads can be extended with standard copper wire of any gauge recommended for the controllers (no special alloy necessary). When used with the TC-24-10 controller the user must add “Fast-On” connectors to attach to controller.
FEATURES
This thermistor has a 2.4 mm diameter bead head and is typically mounted in a hole. The resistance is 15K ohms at @ 25 °C (TS-67/ 15K-1 curve). The wires are not twisted together: they are un-insulated and not terminated. Works will all TE Technology controllers. The wire leads can be extended with standard copper wire of any gauge recommended for the controllers (no special alloy necessary). When used with the TC-24-10 controller the user must add “Fast-On” connectors to attach to controller.
Temperature-Resistance Data
