CP-040HT Mounting Bracket
$20.00

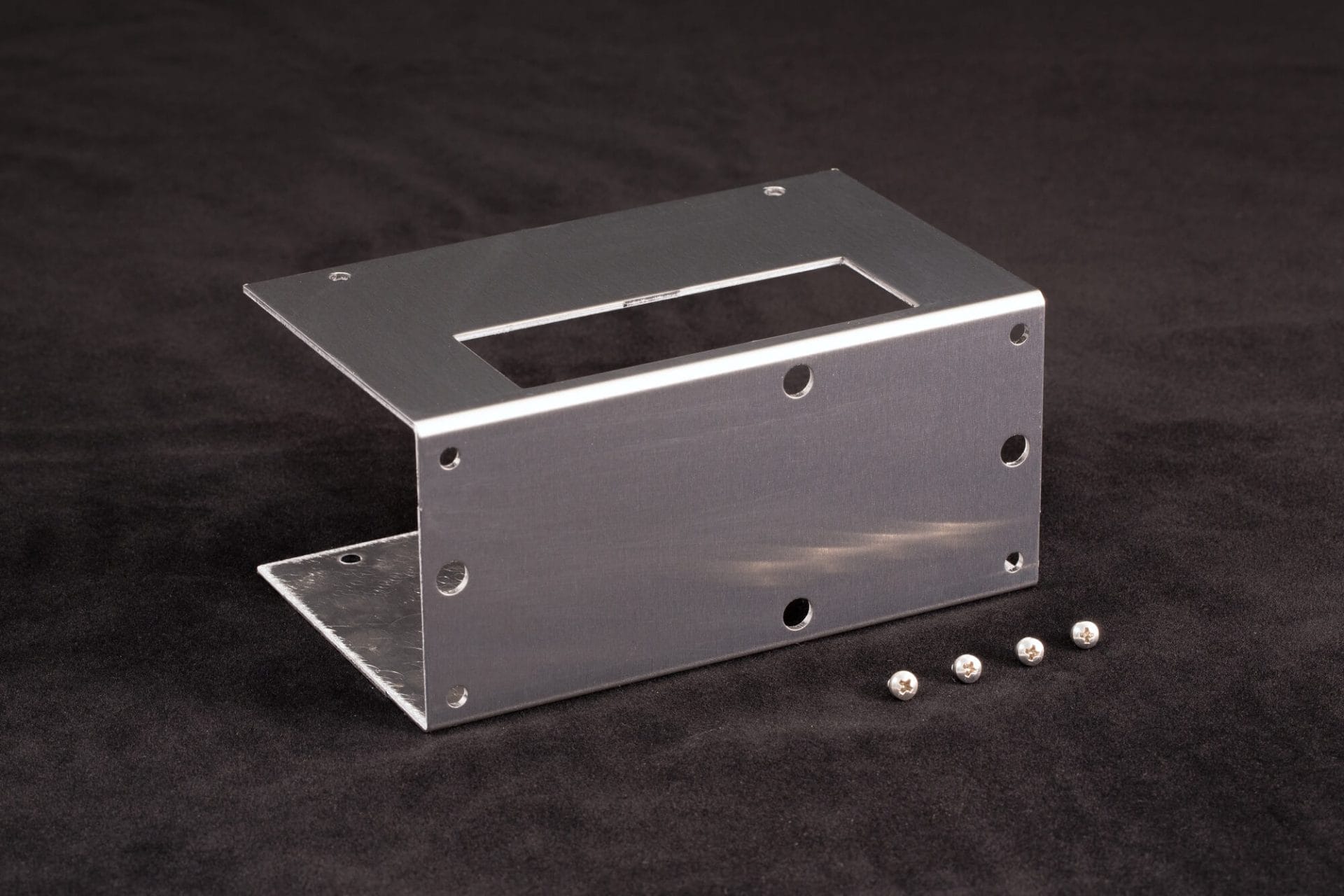

Mounting bracket converts the CP-040HT into a bench-top cooler.
| Weight | .1 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
DESCRIPTION
Mounting bracket converts the CP-040HT into a bench-top ready cooler.
FEATURES
- Converts the CP-040HT into a bench-top ready cooler.
- Mounting holes are spaced to mount to common optical tables and breadboards.
- Includes four M3 screws for attaching the bracket to the CP-040HT.
- RoHS compliant
DATA SHEET
SOLID MODEL
CP-040HT with optional brakcet 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)
3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.
| 3D Solid Models |
| Parasolid: CP-040HT-with-optional-bracket.x_t (best for importing into SolidWorks) See note below before downloading files. |
| STEP: CP-040HT-with-optional-bracket.stp See note below before downloading files. |
NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t, .sldprt or .stp before using.
You may also like…
CP-040HT
Capacity Rating: 40 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides very good cooling capacity with a small form factor. Narrow heat sink is only 67 mm wide. Powered by 24 VDC and compatible with all of our temperature controllers. Combined with a bipolar temperature controller, it can also be used for heating up to 100 °C. An optional bracket is available for converting to bench-top use.
Related products
CP-031
Capacity Rating: 31 watts at a 0°C temperature difference.
Example Applications: Small laser diodes and laboratory instruments.
Features: This cold plate provides effective direct contact cooling in our lowest cost standard assembly. The lack of an extender block between the module and cold plate helps make this our smallest cold plate. The cooler is best suited for small heat loads where a large temperature difference is not needed. Can be used for heating and cooling. Powered by 12 VDC, it has the lowest power consumption of any of our standard cold plates, which makes it compatible with all of our temperature controllers.
CP-036
Capacity Rating: 34 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides good cooling for small heat loads at low temperatures. This is made possible by using a large heat sink for only one thermoelectric module and an extender block that allows extra insulation between the heat sink and cold plate. Can be used for heating and cooling. Powered by 12 VDC, its low power consumption makes it compatible with all of our temperature controllers.
CP-061HT
Capacity Rating: 61 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Two-module cold plate increases the heat-pumping capacity for cooling medium sized heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. This cooler is powered by 24 VDC and is compatible with the TC-48-20 series, TC-720 series, TC-36-25 series, and TC-24-10 temperature controllers. This is a variant of the CP-061 which allows for heating up to 100 °C.
CP-065
Capacity Rating: 65 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Another two-module cooling system with the heat sink airflow directed in a more typical configuration (in the middle and out both ends). Like all of our coolers, it can be easily customized to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.
CP-110
Capacity Rating: 110 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, laser diodes, medical products, and cooling corrosive liquids with an optional stainless-steel liquid exchanger.
Features: This cold plate uses two large thermoelectric modules for cooling medium sized heat loads. The high efficiency bonded-fin heat sink keeps the cooler small yet effective. One stainless-steel liquid exchanger can also be attached for cooling of corrosive liquids (please inquire for this option). Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-36-25, TC-48-20 and TC-720 series temperature controllers.
CP-121HT
Capacity Rating: 126 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Four-module cold plate increases the heat-pumping capacity for cooling medium to large heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used with one LC-SSX1 liquid exchanger. Can be used for cooling and heating up to 100 °C (bi-polar controller required). This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.
CP-200HT
Capacity Rating: 196 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
Features: A variant of the CP-200, this cooler adds the extra capability of heating up to 100 °C.
CP-200HT-TT
Capacity Rating: 196 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
Features: A table-top version of the CP-200HT, the unit additionally has a shroud that encloses the fan and also has legs which stand off the fan from the table top, allowing air to enter freely into the heat sink.
